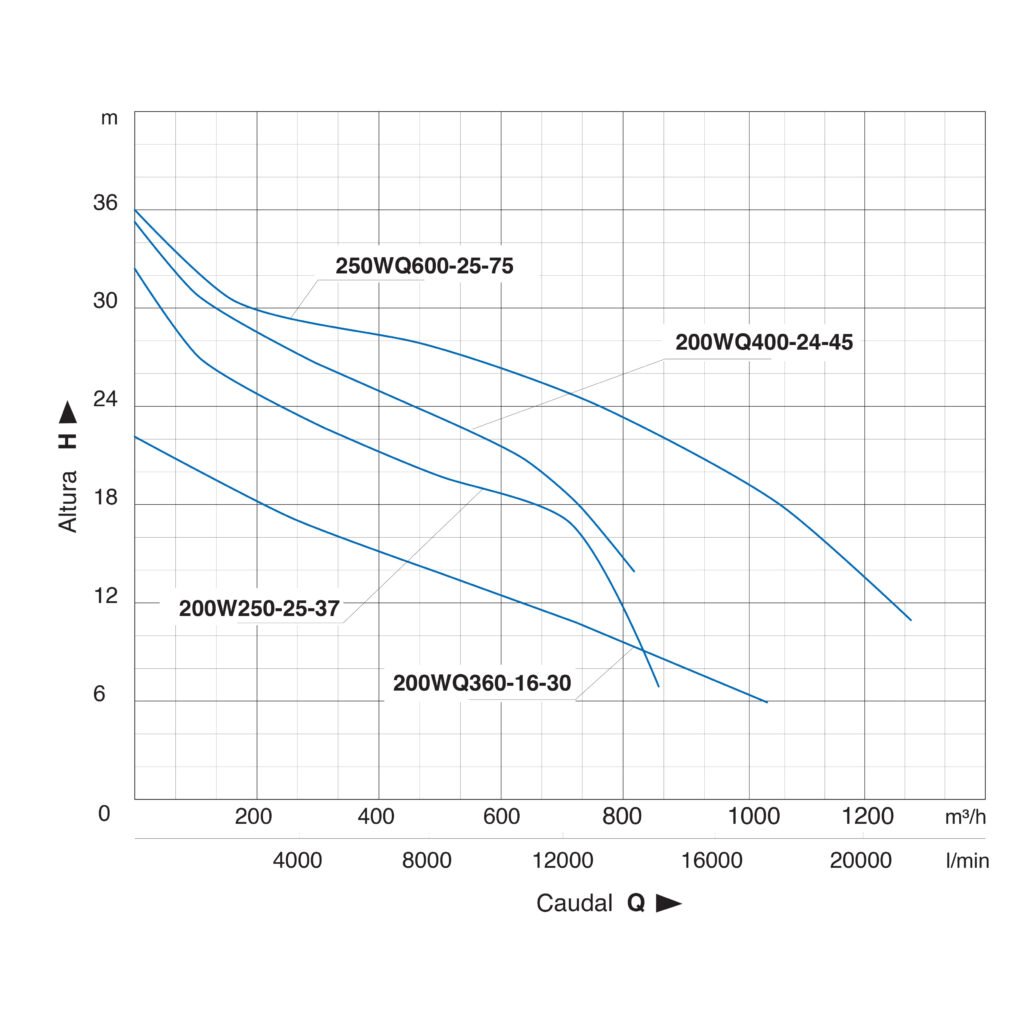

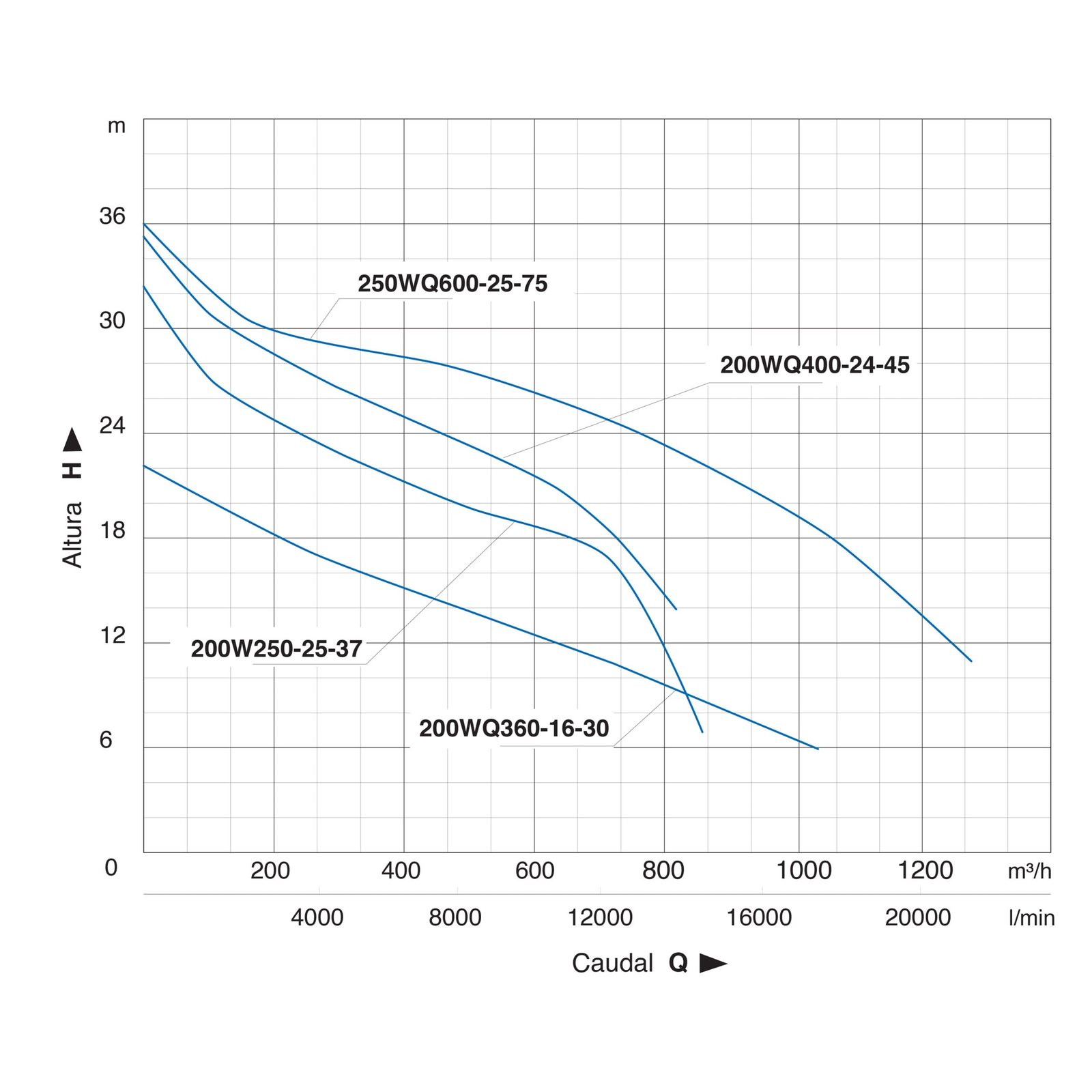

| MODELO | 250WQ600-25-75 | 200WQ400-24-45 | 200WQ250-25-37 | 200WQ360-16-30 |
|---|---|---|---|---|
| CLAVE | 1140 | 1138 | 1136 | 1135 |
| HP | 100 HP | 60 HP | 50 HP | 40 HP |
| W | 75000 W | 45000 W | 37000 W | 30000 W |
| Voltaje | 440V~3F | 440V~3F | 440V~3F | 440V~3F |
| Frecuencia | 60 Hz | 60 Hz | 60 Hz | 60 Hz |
| Flujo Máximo | 21600 (l/min) | 14200 (l/min) | 14160 (l/min) | 12600 (l/min) |
| Descarga Ø | 10" | 8" | 8" | 8" |
| Altura Máxima (Metros) | 100 m | 60 m | 50 m | 40 m |
| Dimensiones (mm) | 102 x 830 x 2250 | 850 x 650 x 1950 | 850 x 650 x 1850 | 850 x 650 x 1850 |
| Peso | 1600 Kg | 1250 Kg | 900 Kg | 800 Kg |
